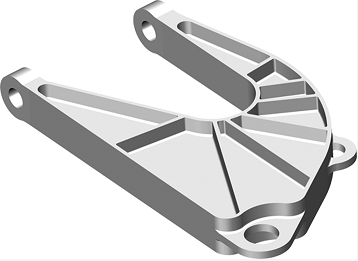

Titanium alloy are getting more and wider application, it
is major material for structural parts of aircraft vehicle. We developed –NM
geometry inserts targeting the titanium alloy materials machining, such as
RCKT-NM, ADMT-NM, SPGT-NM specification are matching with a complete range
of specifications FMR, EMP/HMP milling tools and ZTD U drills, can achieve
high-efficiency machining for titanium alloy structural parts.
Face milling
FMR 02 series, standard tool mounted with RCKT-NM inserts for
normal machining. It can shorten machining time with wide application in
roughing and semi-finishing.
EMP series, HMP series tools mounted with ADMT*-NM series inserts; specially designed for titanium inserts for slot milling, side milling and cavity machining.
Drilling
SD series
twist drills
The main
cutting edges are convex curve, with longer edges to reduce load on each unit,
also lower wear rate; rake angle of flute “g” is a negative value, larger point
angle facilitate heat-dissipation.
ZTD U drills
Brand-new
treatment of conductor materials with high hardness and longer tool life; new
positioning insert mounting angle with excellent chip breaking performance and
low vibration in operation; mounted with SPGT*-NM insert, is suitable for titanium
and high temperature alloy machining.
Solid
carbide ball-nose end mills, sharp edges and large chip pocket, is suitable for
roughing and finishing; flat and smooth of end face, no sharp point, better
wear resistance; high-performance KMG 405 coating further improved wear
resistance.
