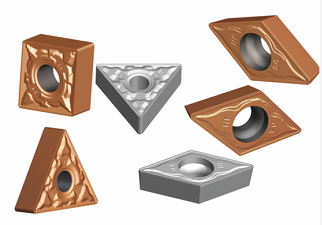

New Generation Precise Turning Inserts

New generation

Precise turning inserts

Optimized geometry can achieve perfect chip control at a wide range of cutting data. Mainly applied in finish and semi-finish machining of steel as well as stainless steel materials .

With precision grinding techniques bring high dimension accuracy and high indexing repeatability. Specially designed rake face structure ensures insert strength while greatly reducing cutting force. Advanced edge treatment and after coating treatment for excellent surface finish.

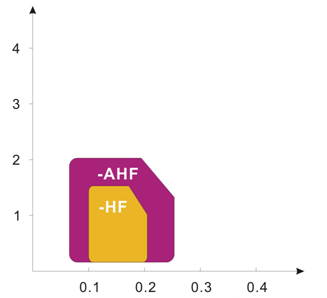

Depth of cutting

                                                                        feed rate

Workpiece material: 42 CrMo;

Based on advanced chip control design,general-purpose geometry, mainly applied in finish and semi-finish machining of steel as well as stainless steel materials.Grinding techniques for inserts greatly improve precision.

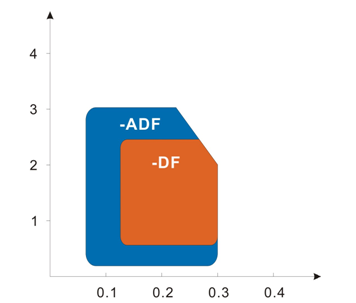

Cutting depth

                                                                  Feed rate

Workpiece material: 1Cr18Ni9Ti;

Insert: DCMT11T304-AHF/YB9302;

V=200 m/min; ap=1.0 mm;

f=0.2 mm/r.

Case

Workpiece material: Stainless steel;

Insert: DCMT11T304-AHF/YB9302;

Cutting data: V=200 m/min; ap=1.0 mm;

f=0.2 mm/r.
